features
Everything It Can Do
Click any screenshot to view full size. Every feature is live and actively used.

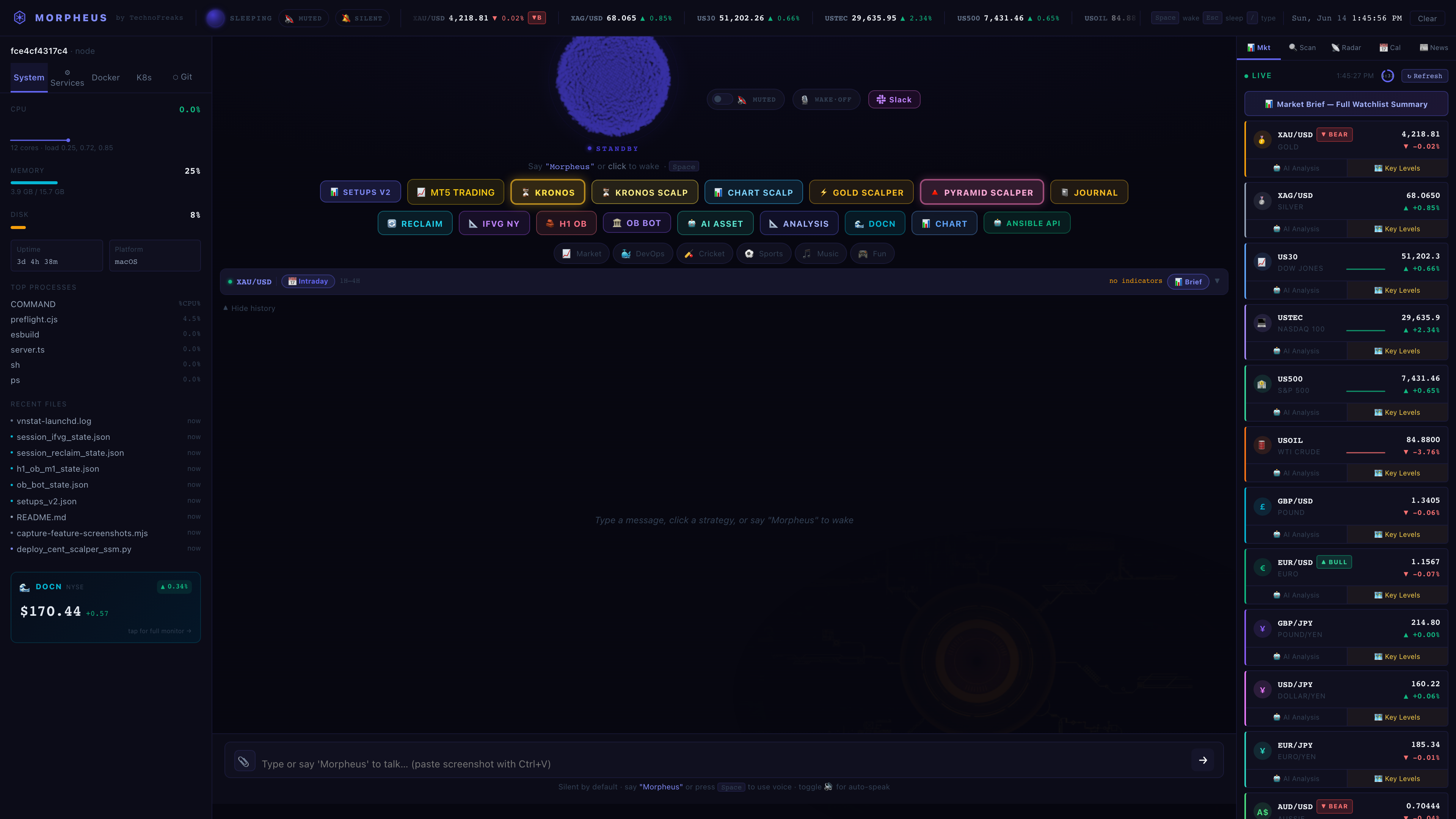

Main Dashboard
The command centre — a 3D audio-reactive particle orb (Three.js), live watchlist prices, real-time chat with GPT-4o, and quick-access panels for every feature. Voice-activated with "Morpheus" wake word.

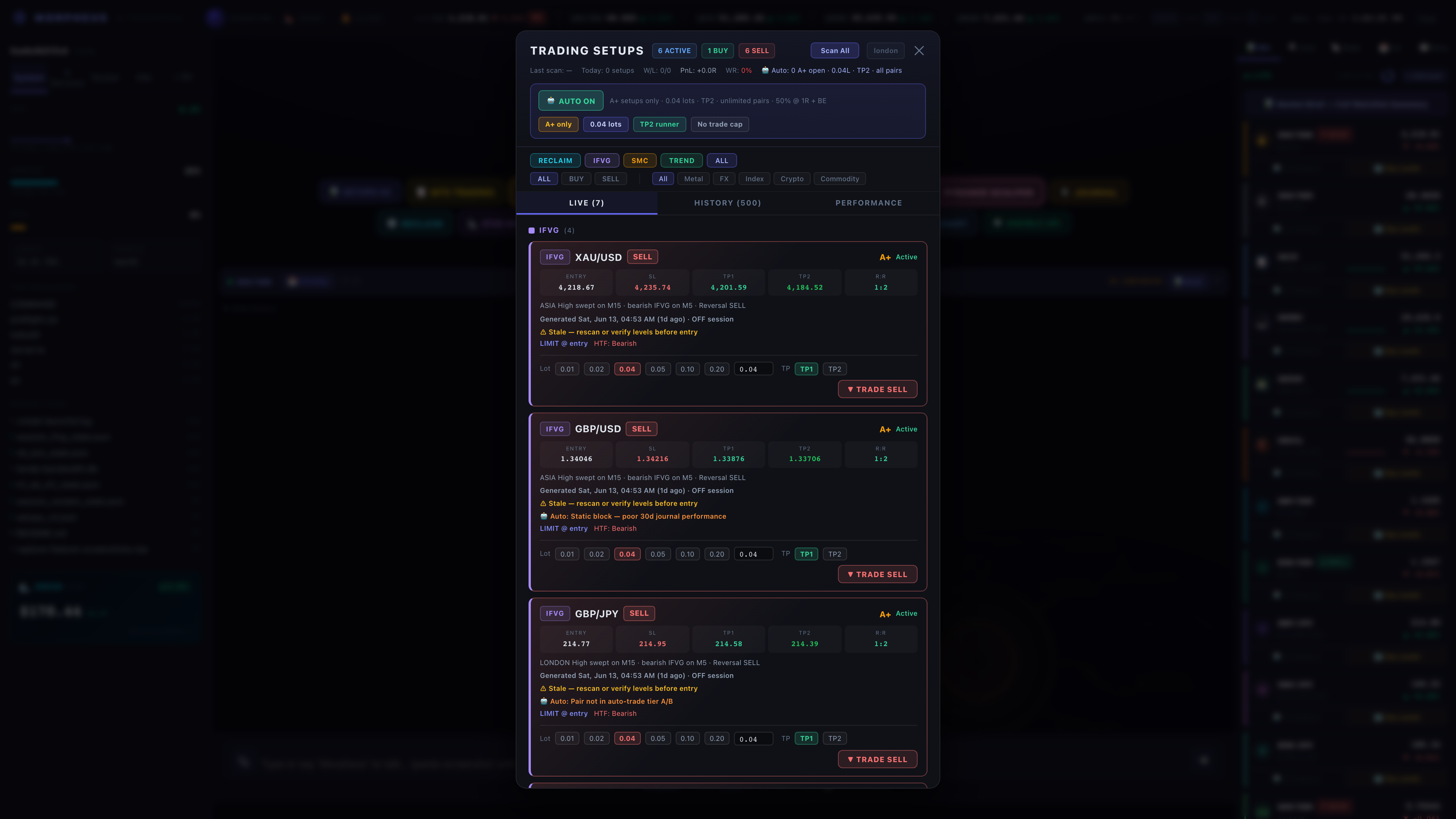

Trade Setup Scanner
Automated 4-hourly scan across all configured pairs. Uses TradingView data + GPT-4o to find liquidity sweep → MSS → FVG entry setups. Results show P&L tracking, timestamps, and direct Buy/Sell execution buttons.

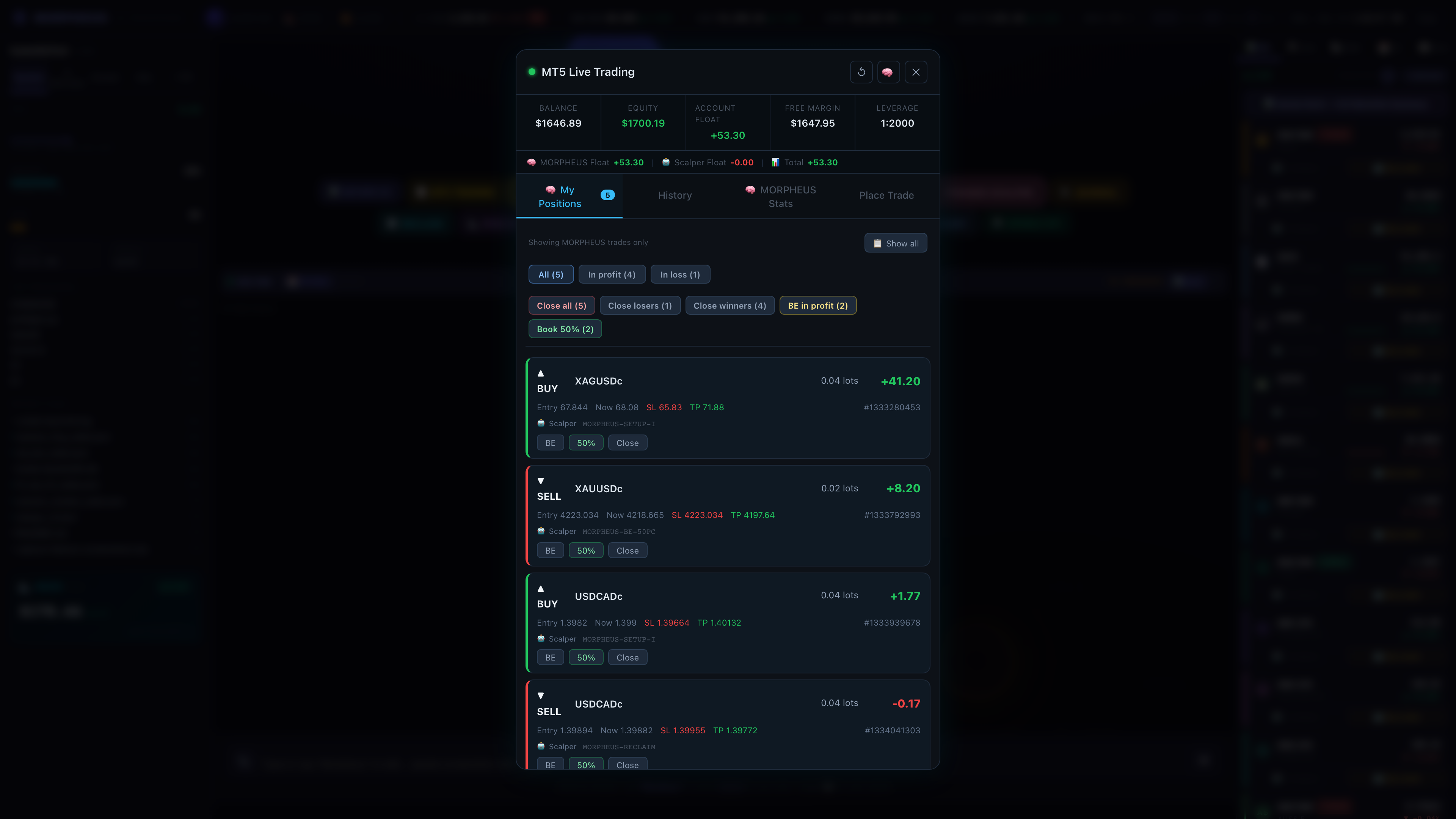

MT5 Live Trading Panel
Full integration with a live MT5 account via a FastAPI on EC2. Shows live balance, equity, margin, all open positions, P&L, and MORPHEUS-specific performance stats. Place, close, and modify trades via chat or UI.

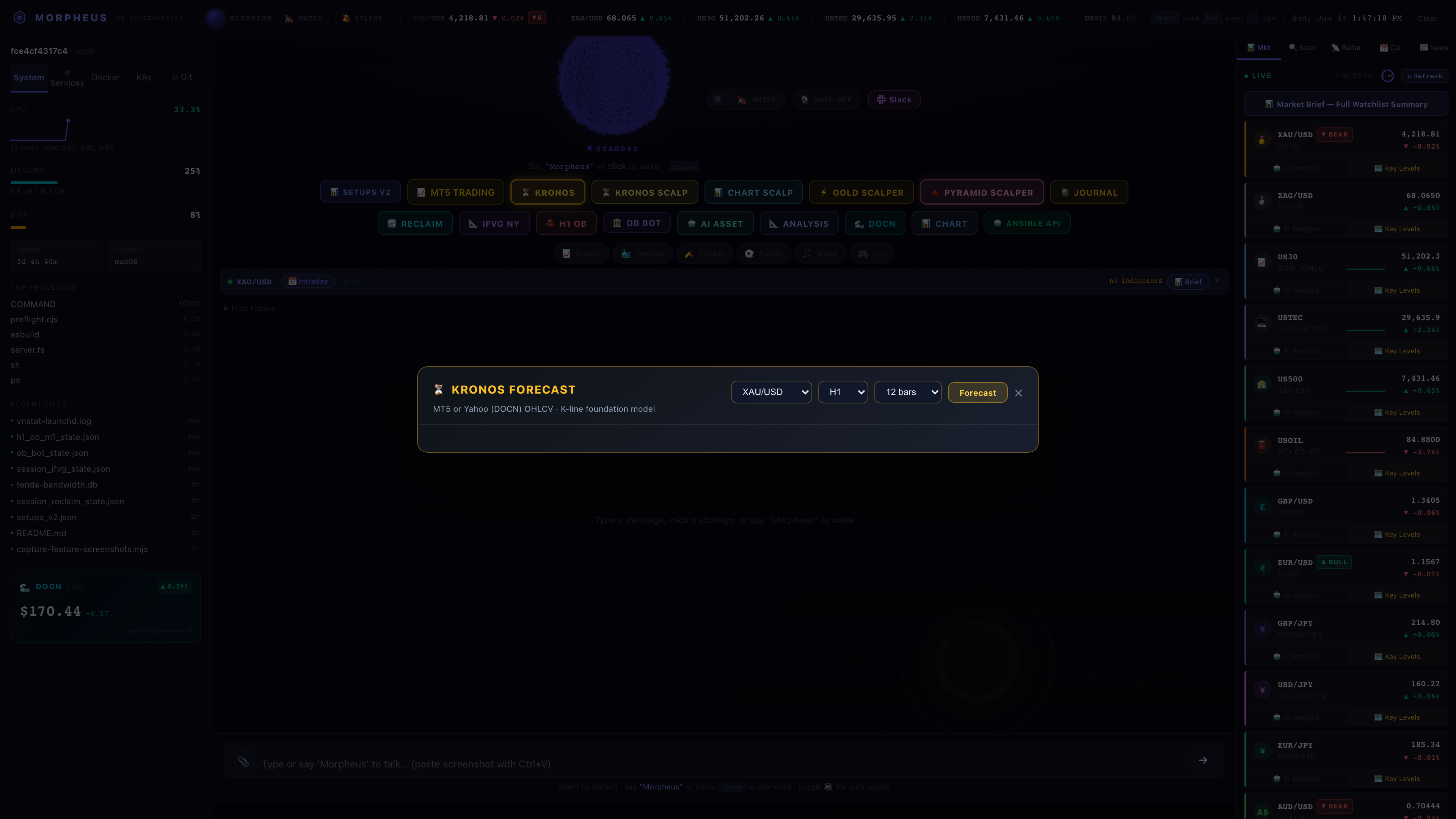

Kronos — Candlestick Foundation Model
A dedicated forecasting microservice (port 8100) that takes live OHLCV data from MT5 and generates probabilistic candlestick path predictions. Used to validate trade setups against model-predicted direction before entry.

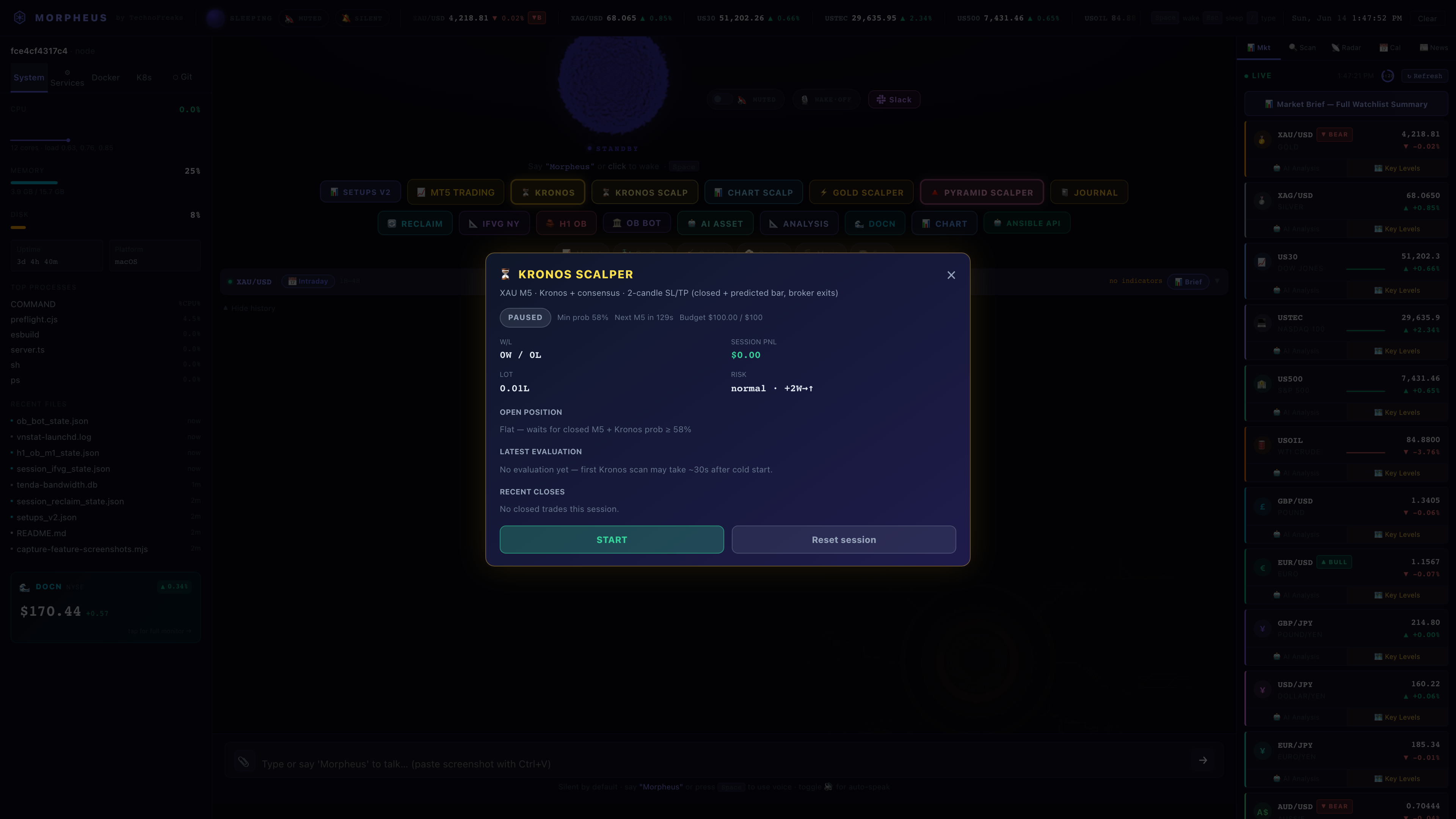

Kronos Scalper — M5 Next-Candle
Combines the Kronos forecasting model with M5 scalping logic. Predicts the next candle direction and confidence on M5 timeframe, then generates a structured trade recommendation with entry, SL, and TP levels.

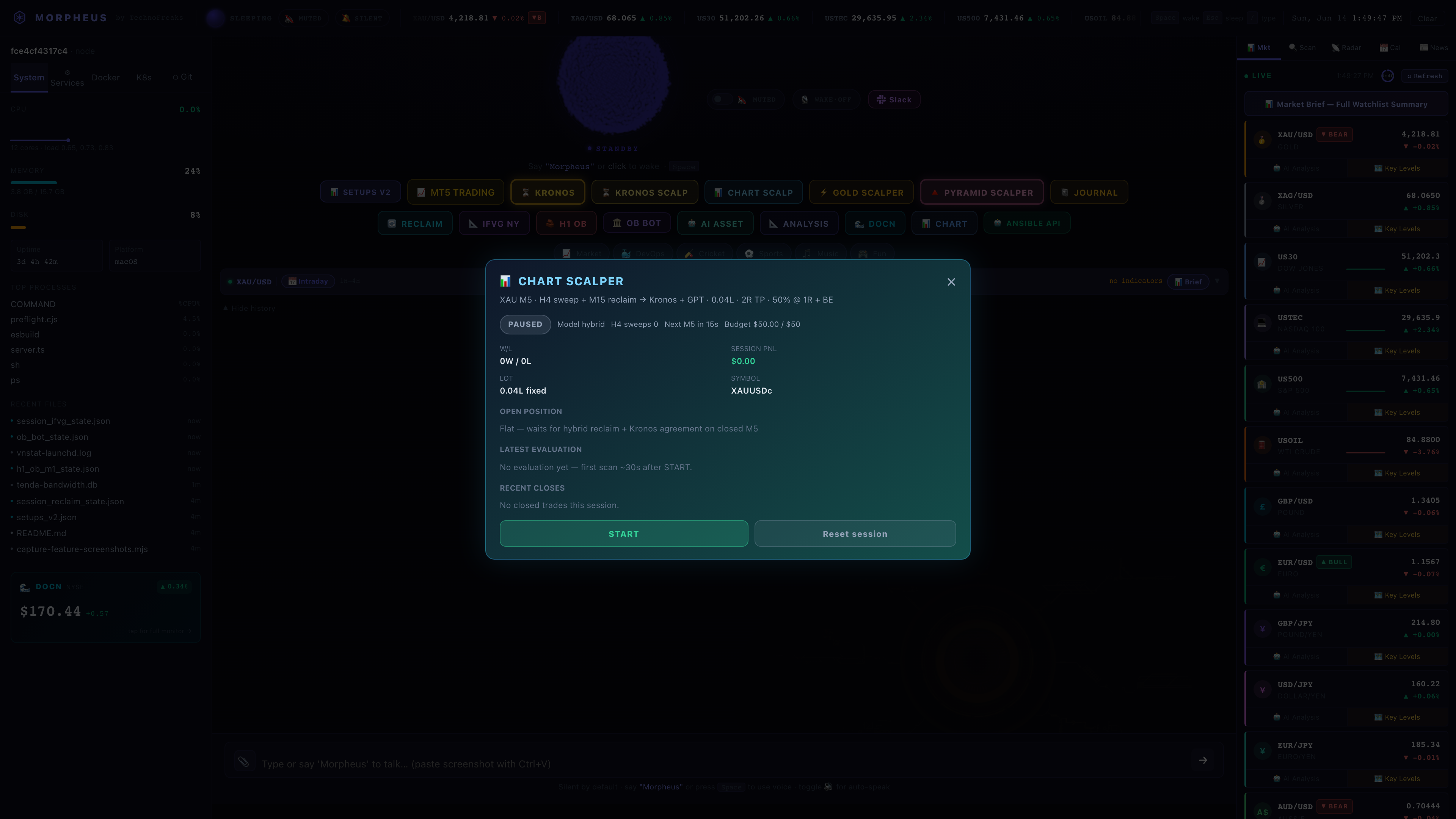

Chart Scalper — XAU Hybrid
A hybrid scalper combining chart-based ICT pattern detection with AI confirmation. Focused on XAU/USD. Detects Fair Value Gaps, liquidity sweeps, and Market Structure Shifts on M5, then filters with GPT-4o-mini before executing.

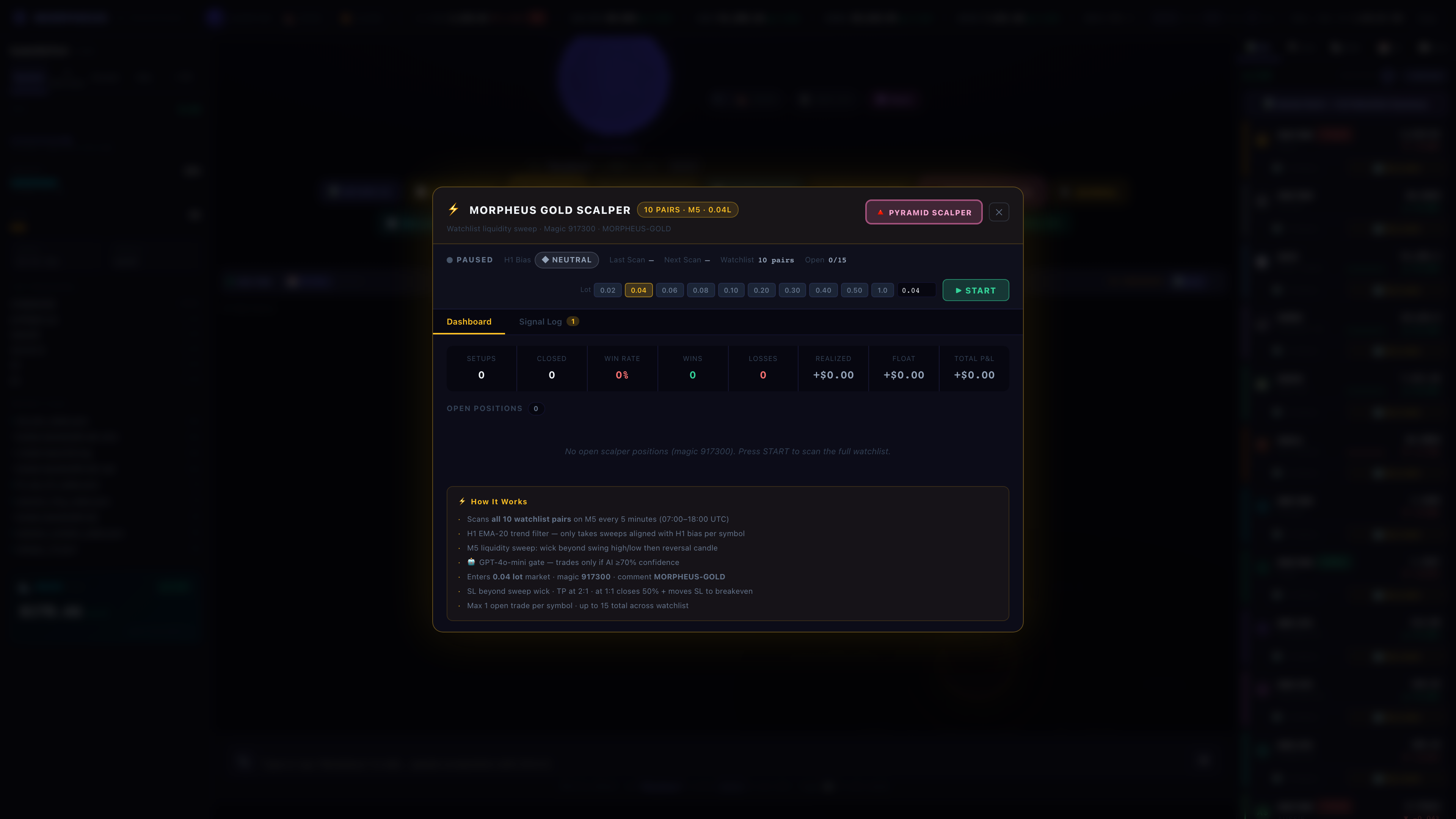

MORPHEUS Gold Scalper (M5 Watchlist)
Fully automated M5 liquidity-sweep scalper across all 14 watchlist pairs (metals, forex, indices, crypto). Checks H1 EMA-20 trend filter, detects wick sweeps beyond 20-bar high/low, gates with GPT-4o-mini (≥70% confidence required), then enters at 0.04 lot with 2:1 R:R.

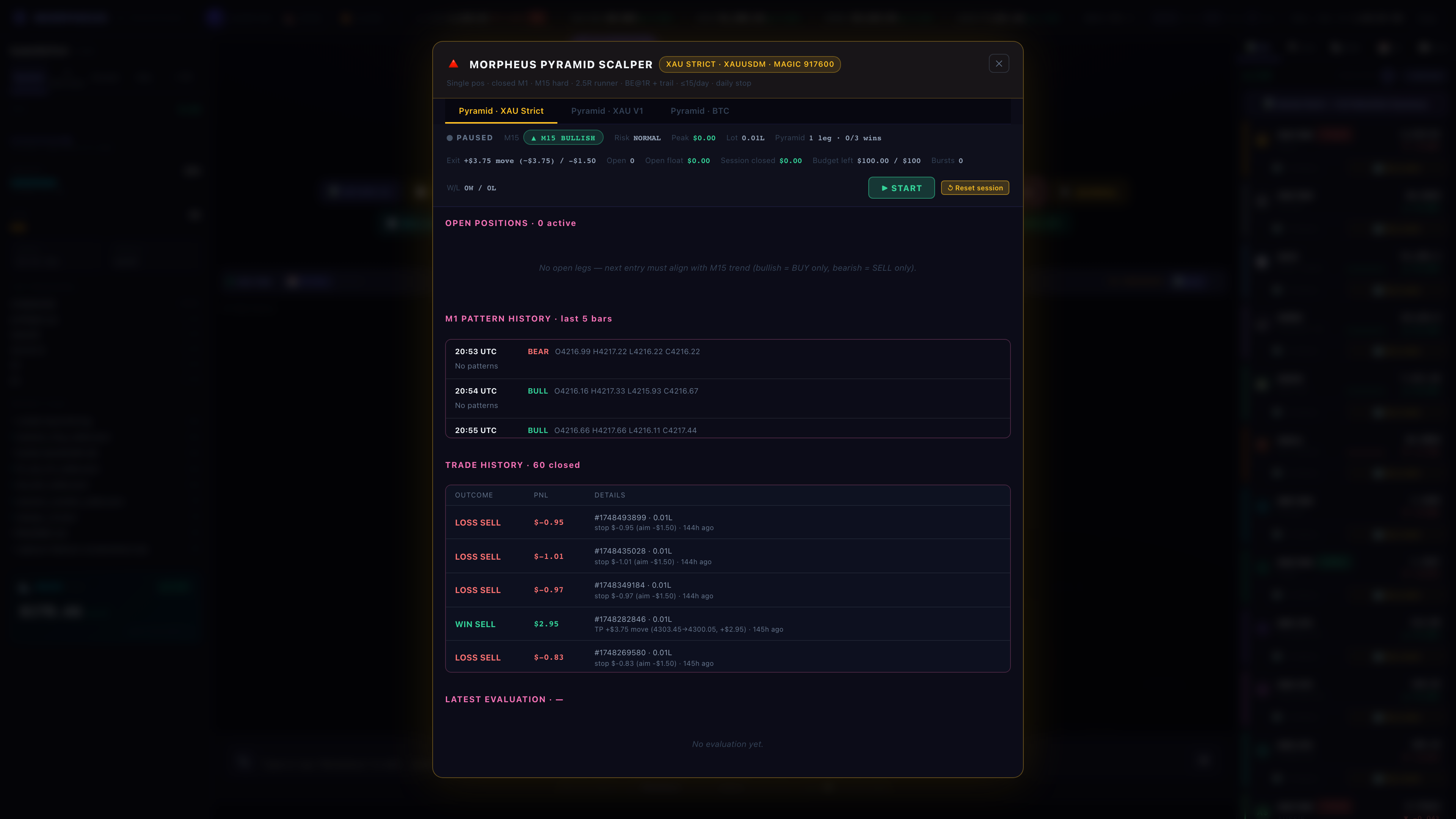

Pyramid Scalper — XAU Strict
A strict pyramid scaling bot for XAU/USD that adds to winning positions at predefined R-multiples. Strict mode requires stronger confluence before adding. Manages position sizing dynamically as the trade moves in favour.

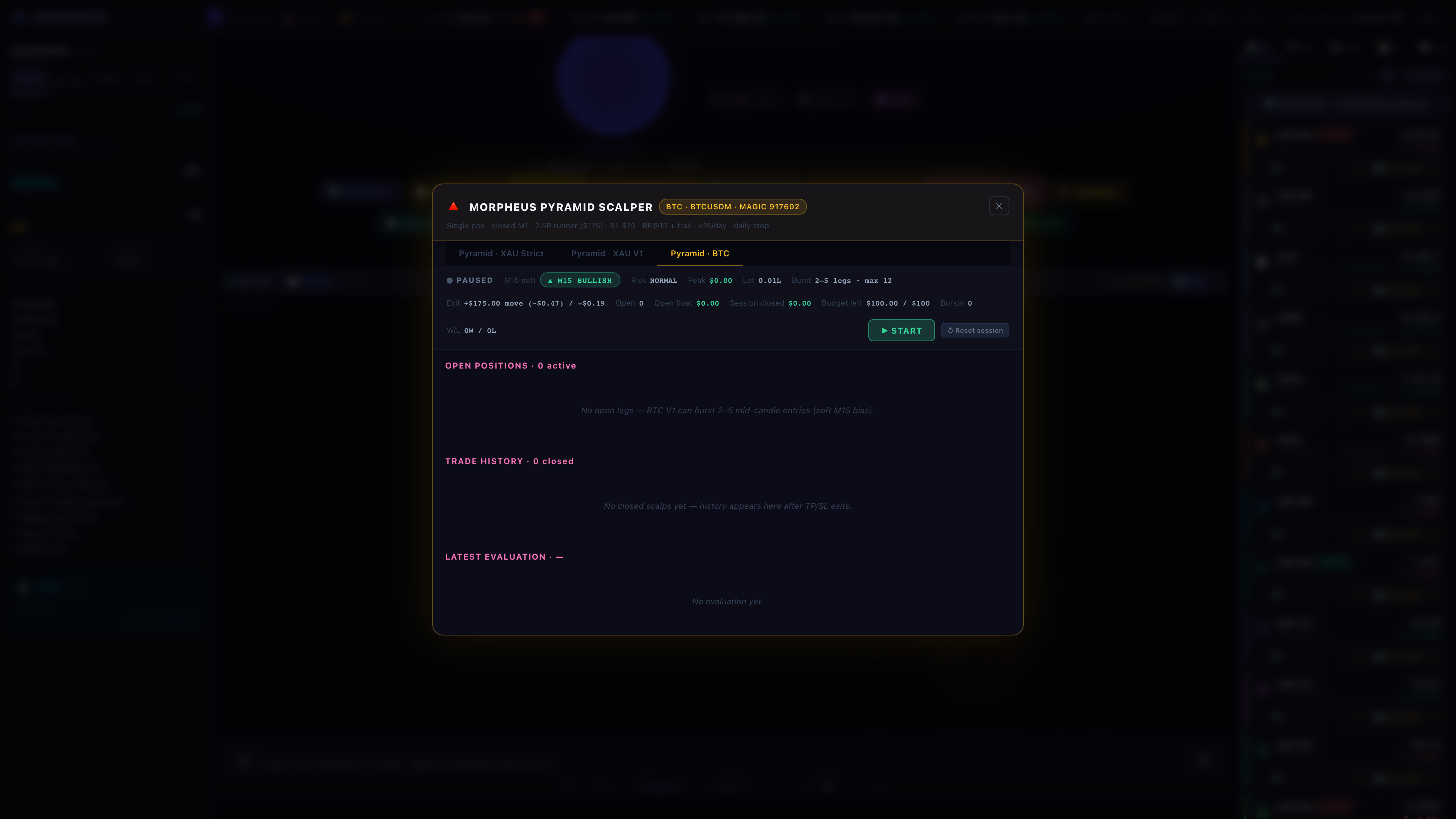

Pyramid Scalper — BTC
Same pyramid scaling logic applied to BTC/USD. Adapts lot sizing and buffer distances for crypto volatility. Separate configuration from XAU version to account for BTC's wider spreads and faster price movements.

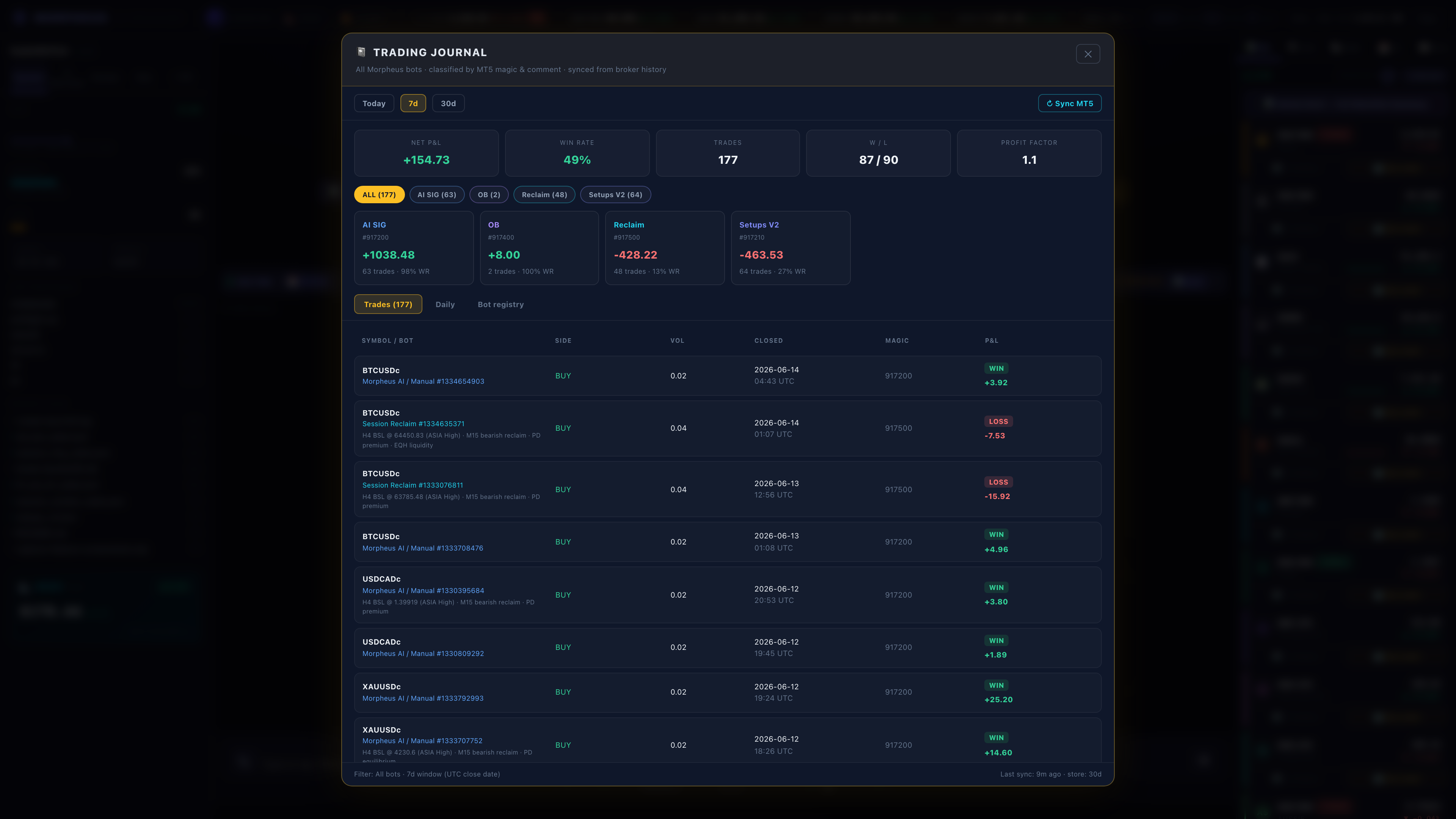

Unified Trading Journal
All bot trades (Gold Scalper, OB Bot, Pyramid, manual MORPHEUS trades) flow into a single journal. Records entry, SL, TP, close price, P&L, R-multiple, exit reason, session, and strategy confluence. Full trade history in one view.
Session Reclaim Bot
Trades the H1 sweep + M5 reclaim pattern at key session transitions. Identifies when price sweeps a key high/low on H1 then aggressively reclaims back inside — a high-probability reversal setup at London open and NY open.

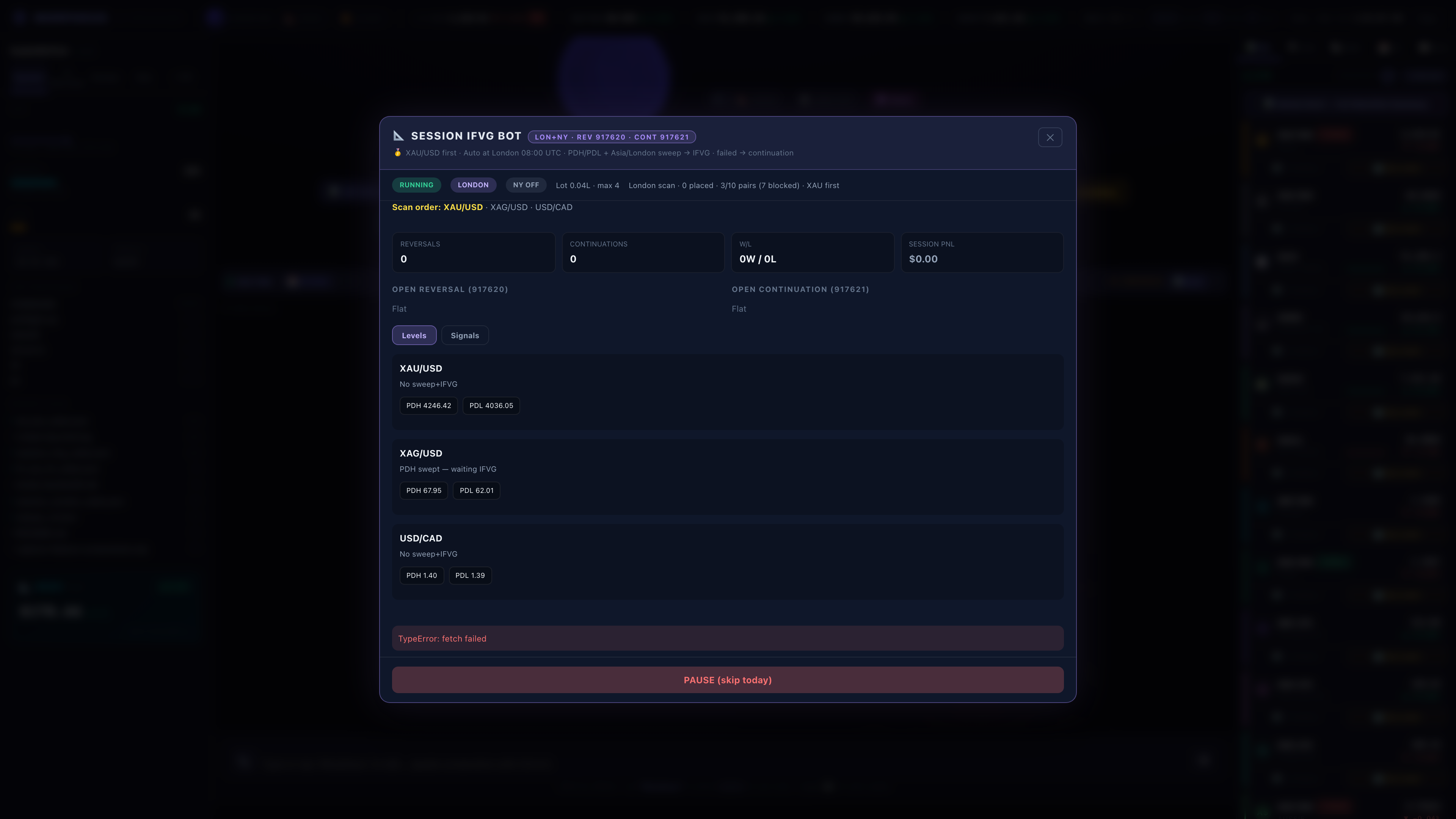

Session IFVG Bot
Auto-starts at 13:00 UTC targeting the New York session. Tracks Previous Day High (PDH) and Previous Day Low (PDL), then looks for Inverse Fair Value Gaps (IFVG) as entry triggers. Combines HTF structure with LTF precision entries.

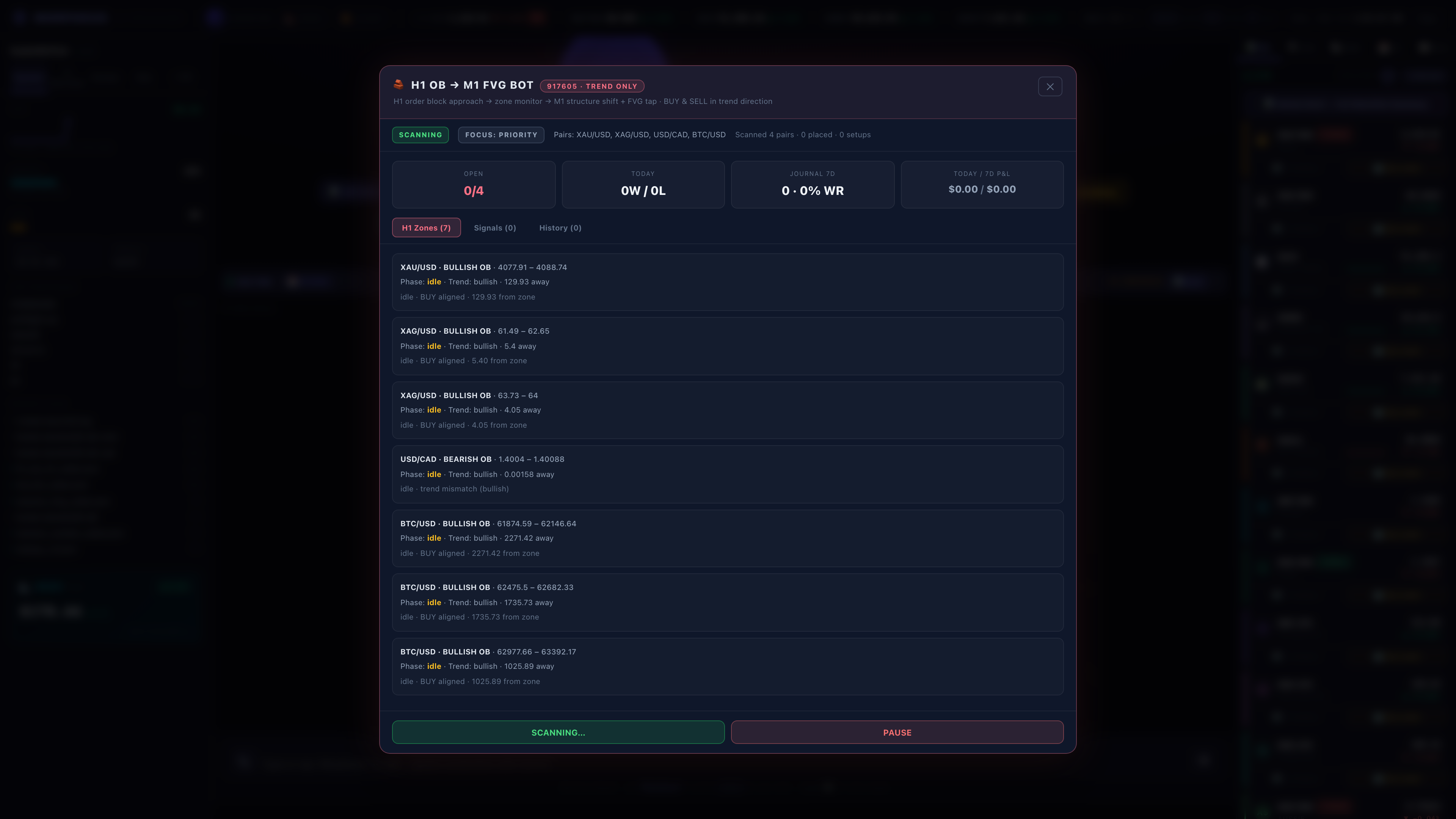

H1 OB → M1 FVG Bot
Multi-timeframe bot: detects H1 Order Blocks (displacement candles), then waits for price to approach the OB zone and confirms with an M1 Fair Value Gap for a precision entry. Combines H1 structure with M1 micro-confirmation.

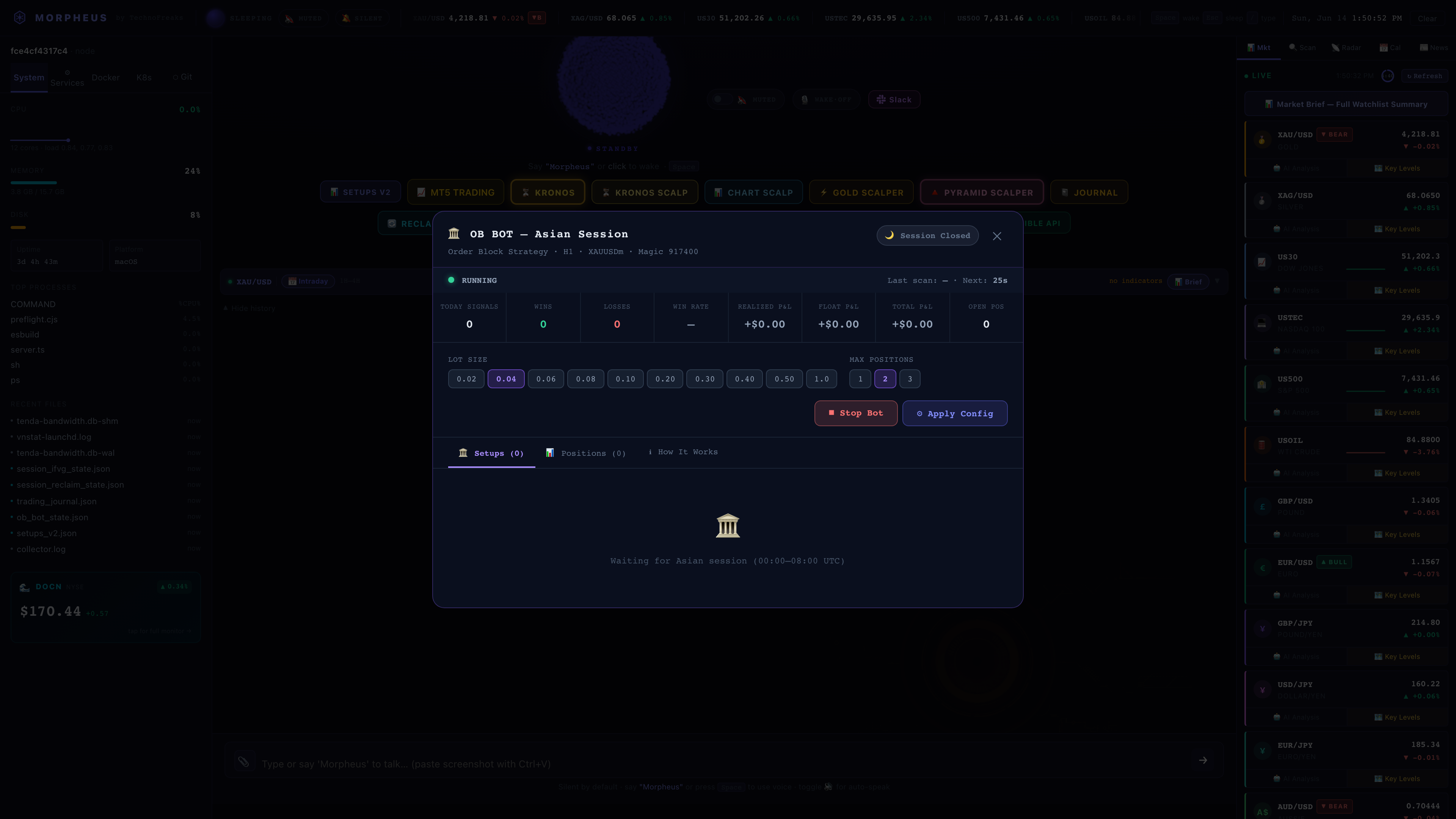

Asian Session Order Block Bot
Runs exclusively during the Asian session (00:00–08:00 UTC). Detects displacement candles (H1 body ≥1.4× median) and marks the preceding candle as the Order Block. Waits for a tap — never chases. Backed by 612-trade backtest: 55.4% win rate, 2.99 profit factor, Sharpe 6.71.

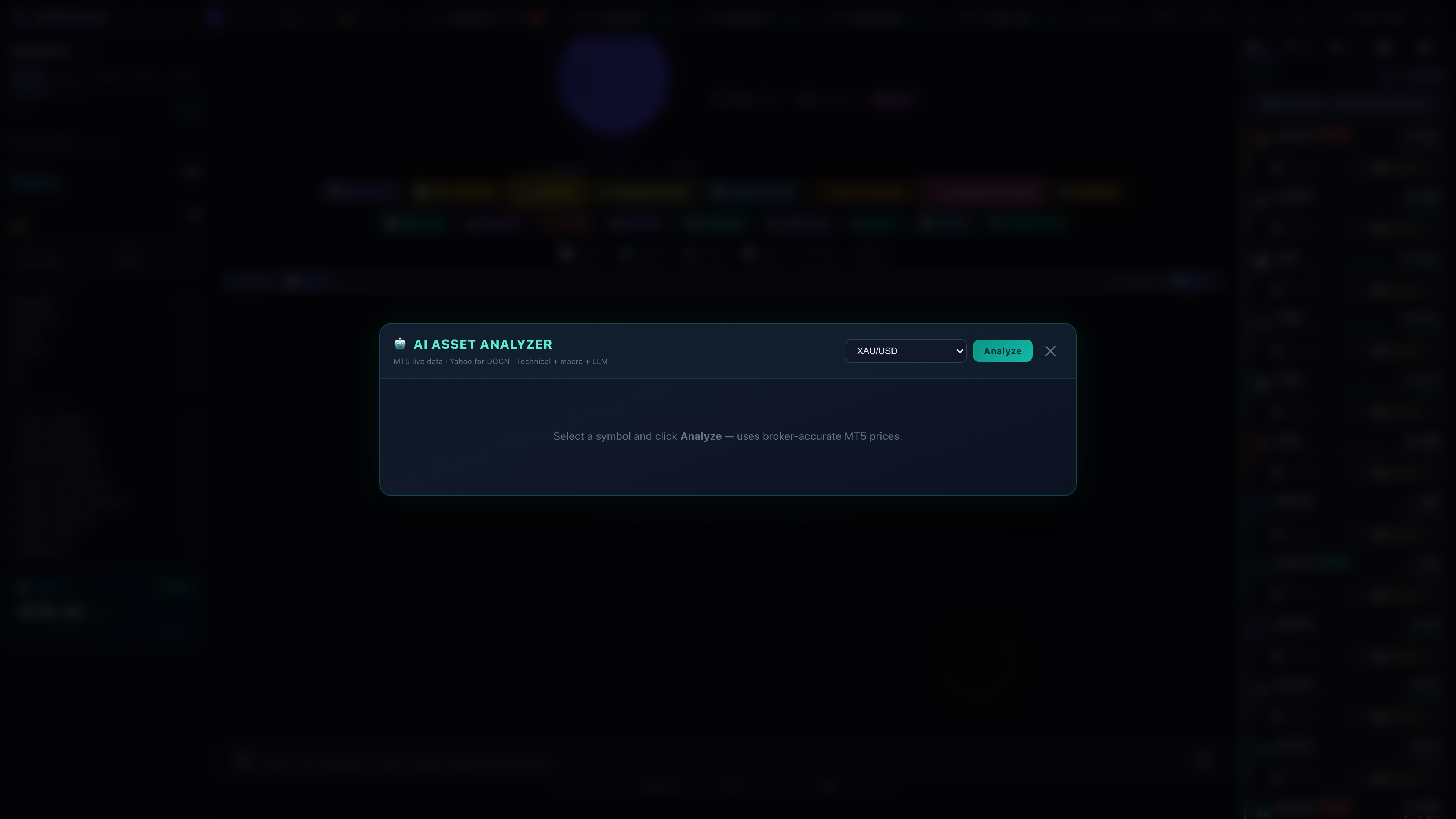

AI Asset Analyzer
On-demand deep analysis of any asset using live MT5 data. Sends OHLCV, tick data, and account context to GPT-4o for a structured bias report — trend direction, key levels, confluence, and trade recommendation across timeframes.

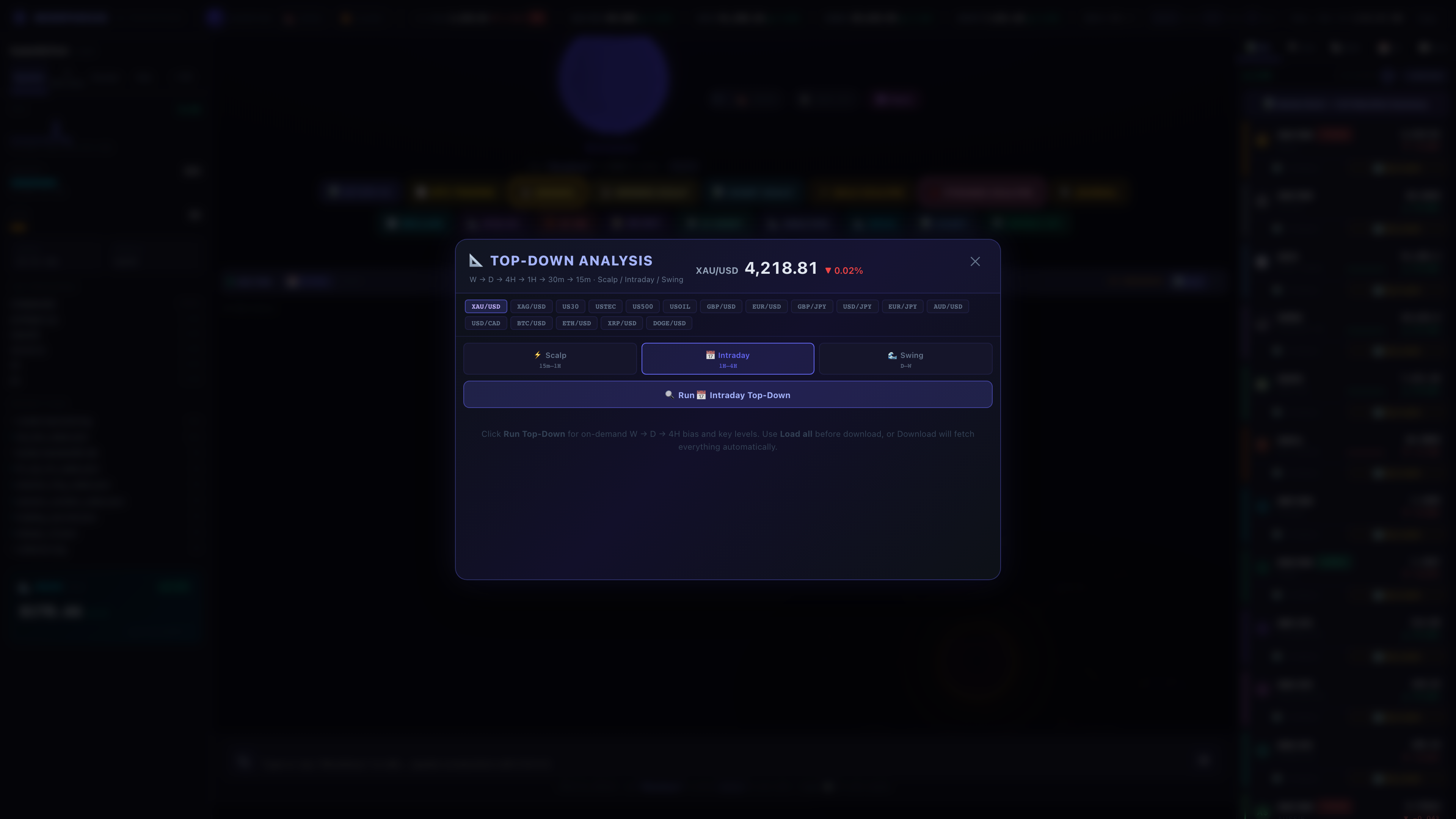

Top-Down Analysis (W/D/4H/1H)
Full ICT-style top-down breakdown starting from Weekly, drilling to Daily, 4H, and 1H. Identifies HTF bias, key order blocks, fair value gaps, liquidity pools, and hands off a final LTF entry plan. Can be triggered by chat or voice.

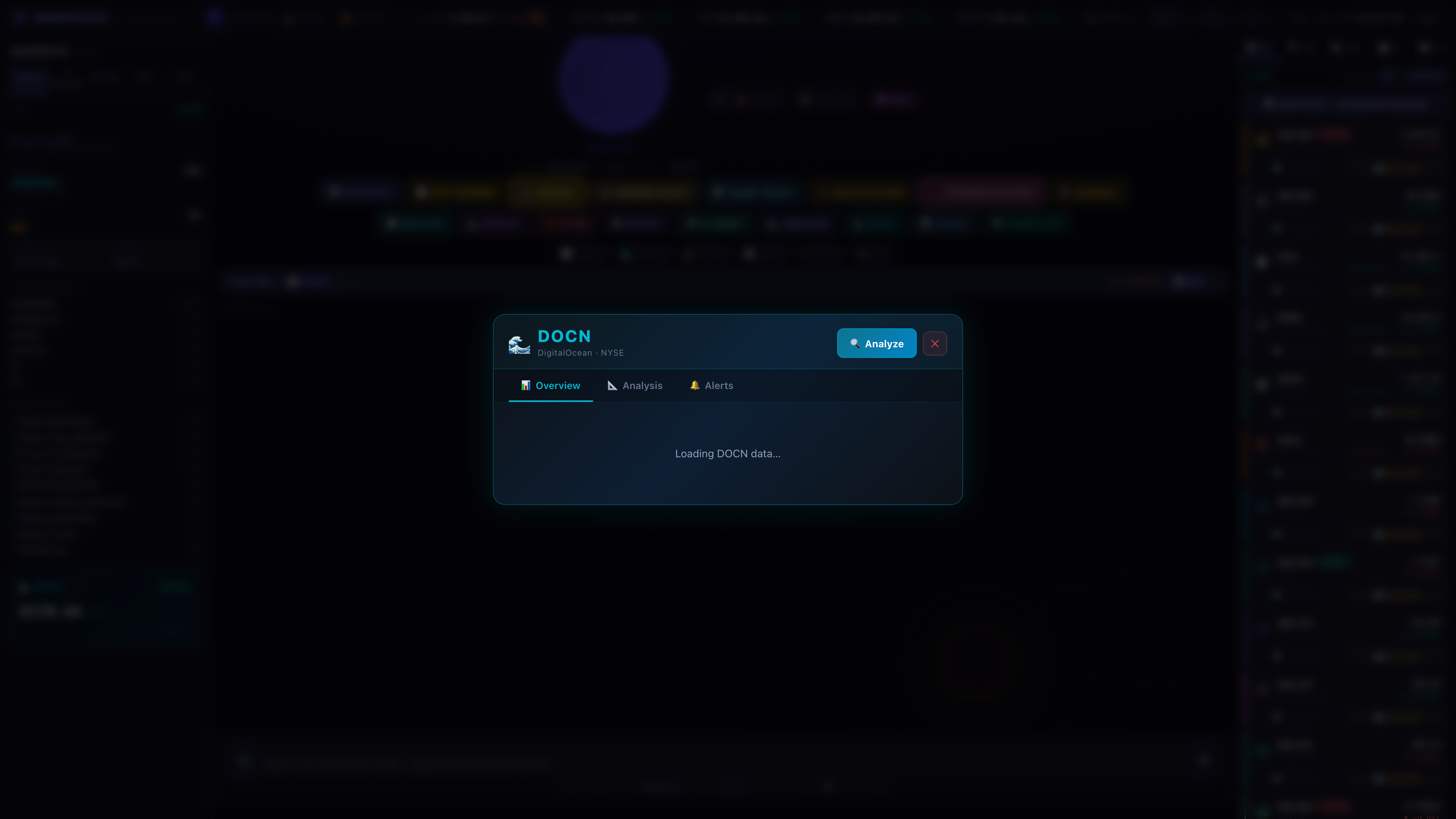

DOCN Stock Monitor
Dedicated panel monitoring DigitalOcean (DOCN) stock — Naveed's employer. Shows live price, 24h change, volume, and key technicals. A personal touch: tracking your own company's market performance alongside your trading.

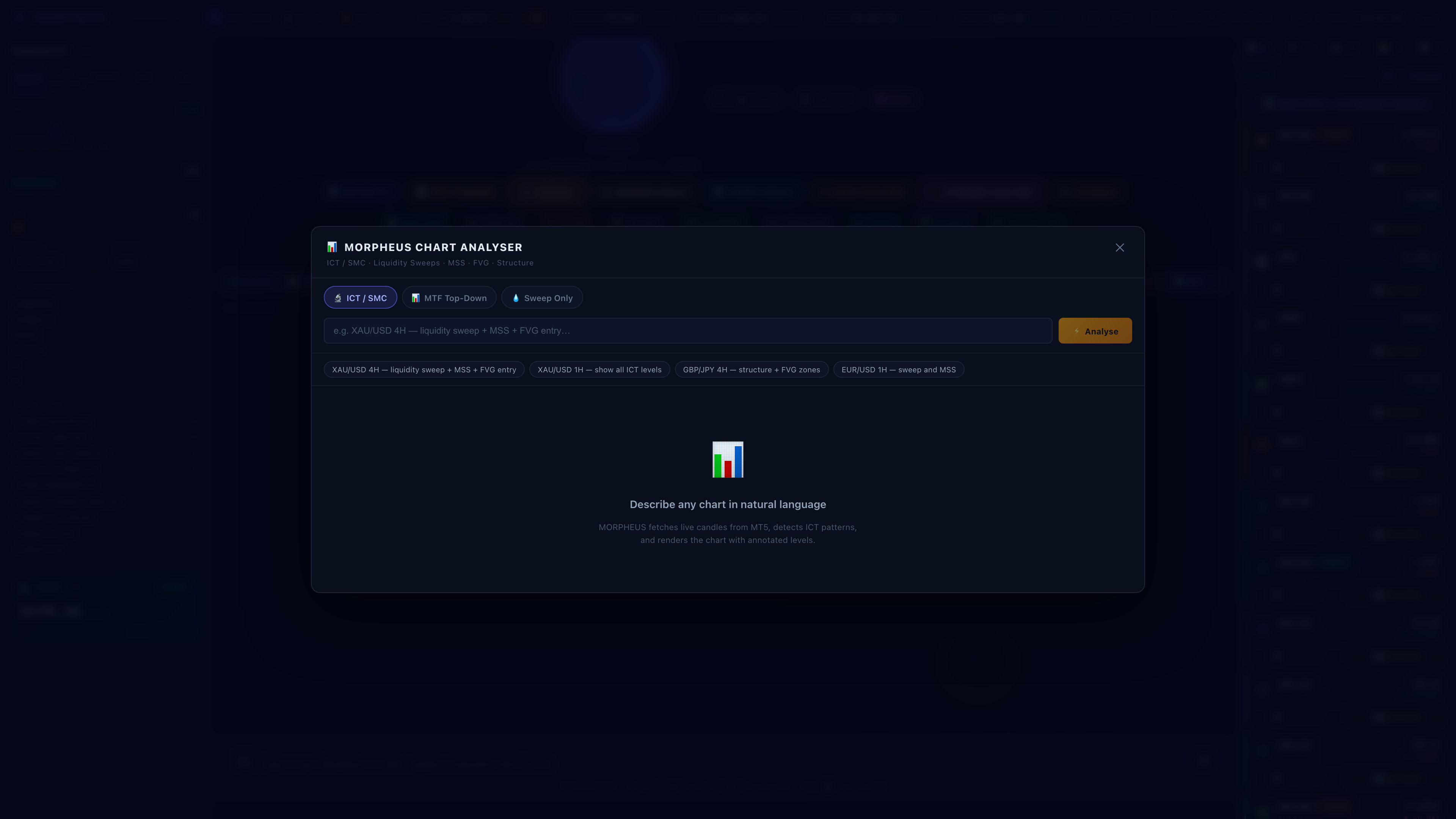

MORPHEUS Chart Analyser (ICT/SMC)
Natural-language chart analysis on live MT5 data. Ask in plain English: "XAU/USD 4H — liquidity sweep + MSS + FVG". Detects FVGs, Market Structure Shifts, CHoCH, and liquidity sweeps. Renders annotated charts via lightweight-charts with AI summary and trade setup output.

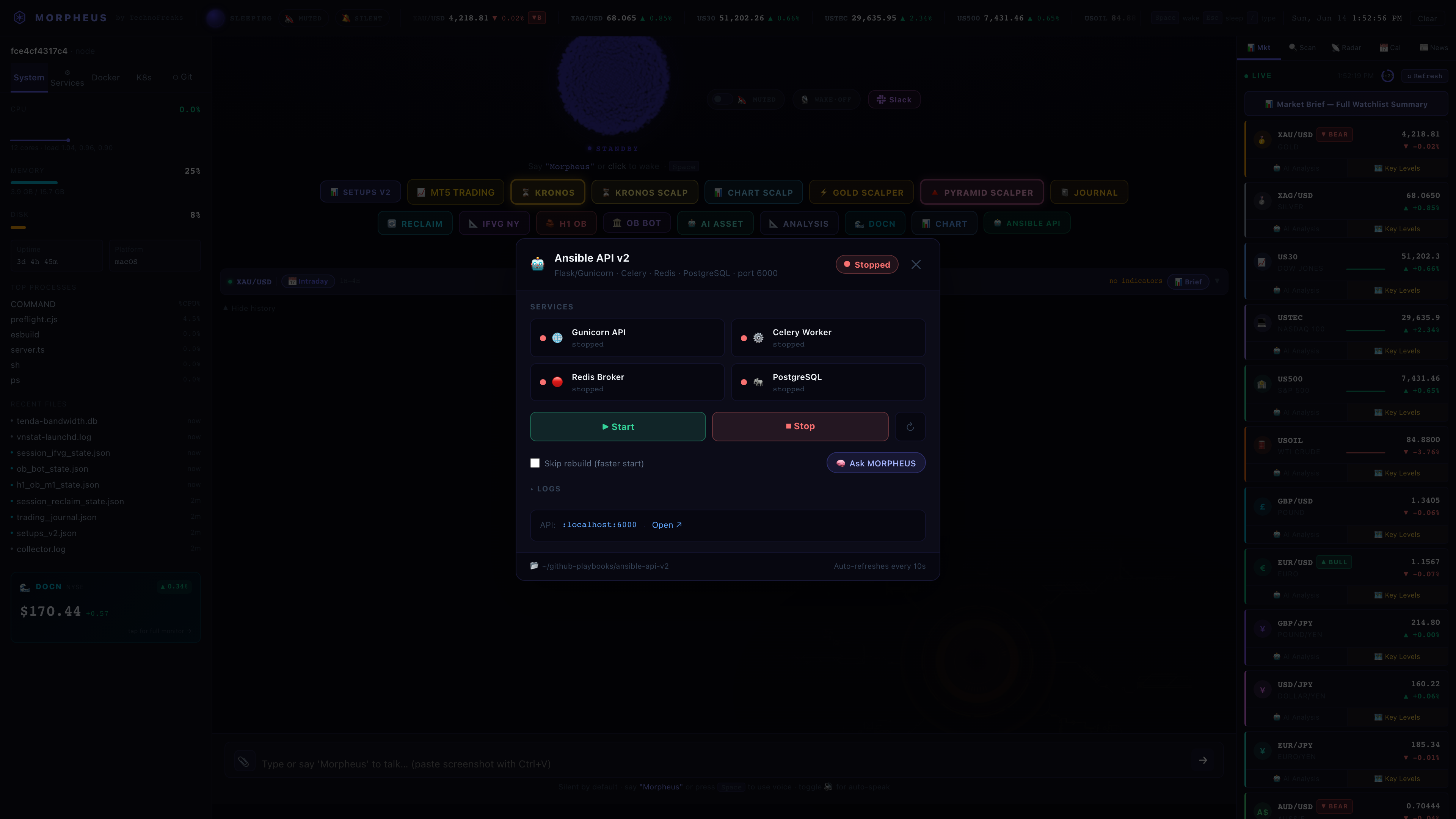

Ansible API v2 Panel
Start, stop, check logs, and run playbooks from the MORPHEUS UI — or by voice. Integrates with three Ansible repos: server provisioning, PHP app deployments, and the Ansible REST API itself (which runs as a Docker service). Supports dry-run, inventory ping, ad-hoc commands.

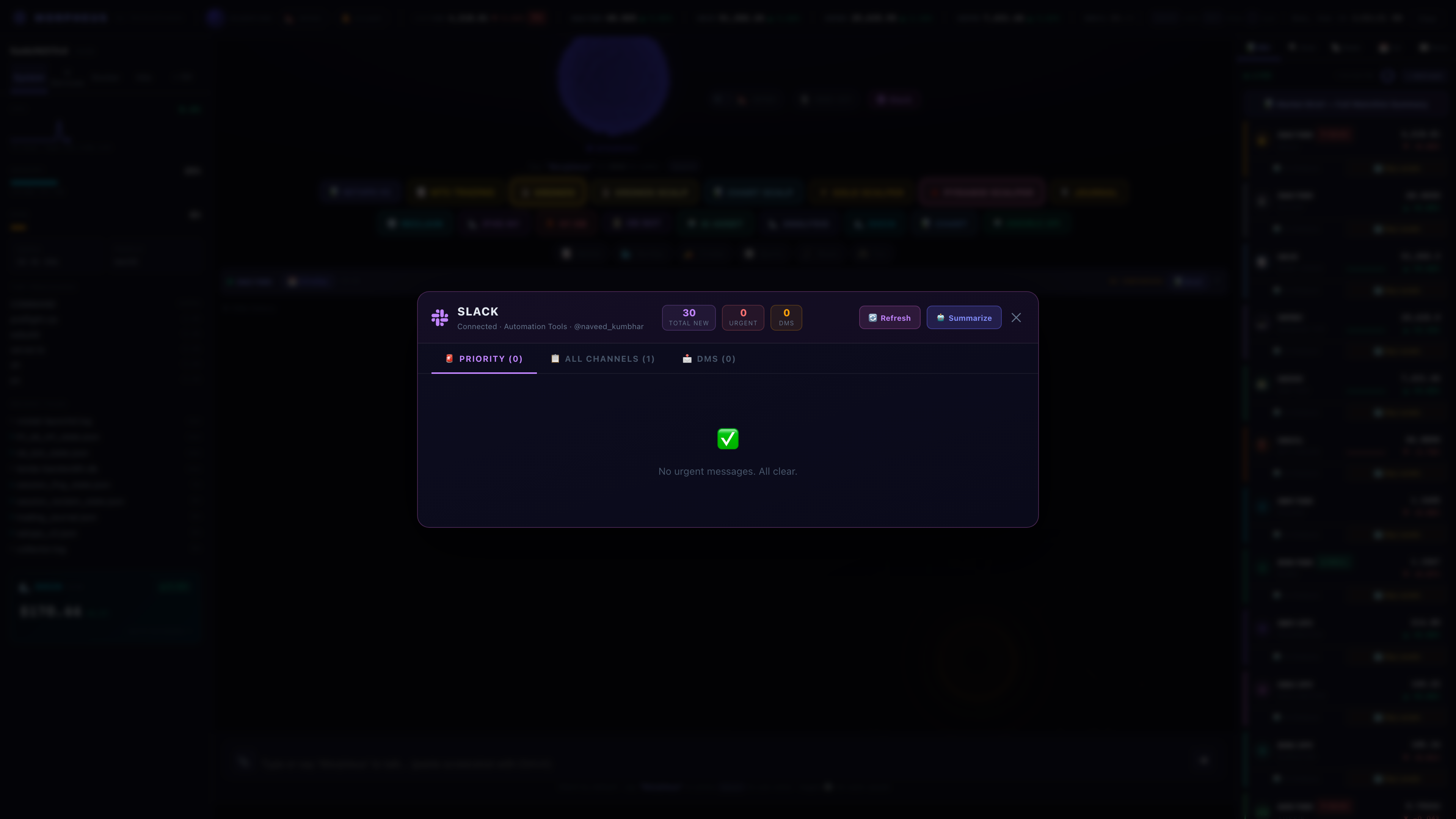

Slack Integration
Reads unread Slack messages from a personal Slack workspace directly in the MORPHEUS panel. Monitors priority channels, delivers DM alerts, and can search across the workspace. MORPHEUS also posts automated alerts here — trade exits, bot status, infra events.
